Panels & tabs
nexGui4 registers a set of panels into the Nexus FlexLayout as docked tabs. Each can be moved, floated, resized, and rearranged like any native Nexus tab, and the arrangement can be persisted (see Layout & presets).
Tab catalog
| Tab | Panel | Shows |
|---|---|---|
| Timers | nexTimers | Countdown / count-up timer bars. |
| Party | nexParty | Current party members and leader. |
| Players | nexPlayers | Players in the room, with a popover and targeting actions. |
| NPCs | nexNpcs | Room NPCs, grouped by category. |
| Items | nexItems | Room items, with a get / probe context menu. |
| Stats | nexStats | Your body diagram and vitals bars. |
| System | nexSystem | The System side-stream transcript. |
| Combat | nexCombat | The Combat side-stream transcript. |
| Defences | nexDefences | Configured defences that are currently missing. |
| Feed | nexFeed | The Achaea public game feed. |
| Target | nexTarget | Body diagram and limb damage for your current target. |
| Options | nexOptions | The Game / Panels / Display / Advanced settings tabs. |
| Metrics | nexMetrics | Runtime and diagnostic metrics. |
Surfaces that are not tabs
Two surfaces mount differently and do not appear in the tab strip:
- Main display — replaces the host's native output area and renders the live game transcript. See The main display & scrollback.
- Scrollback modal — the full-buffer search window, opened by scrolling the wheel up over the main display. Also covered in The main display & scrollback.
Players, NPCs, and items
The Players, NPCs, and Items panels read live room occupancy from GMCP.
-
Players colors each name by city and relationship (ally, enemy, city-enemy) and offers a popover with targeting and lookup actions.
-
NPCs groups room denizens into categories so large rooms stay readable, and supports per-NPC display overrides through
nexGui.api.room.npcs.
The NPCs panel with grouped room denizens and current target highlighted.
The NPCs panel in ungrouped mode. -
Items lists ground items with quick get / probe actions, and supports per-item display overrides through
nexGui.api.room.items.
The Items panel displaying room items.
Stats and target
The Stats and Target panels render a body diagram (limb state) plus vitals. The Stats panel reflects your own character; the Target panel reflects your current combat target and updates as target identity and limb damage change.
Defences
The Defences panel shows the subset of your configured defences that are not
currently up, so you can re-establish them at a glance. The configured checklist
is editable through nexGui.api.customize.defences.
The Defences panel displaying missing defences.
Timers
The Timers panel displays countdown and count-up timer bars.
The Timers panel displaying active countdown and count-up timers.
Party
The Party panel lists current party members, their vital status, and the selected leader.

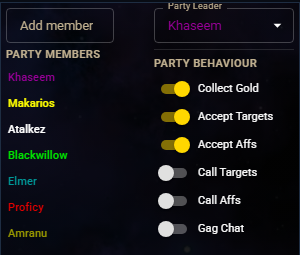

The Party panel with members and leader selected.
Feed
The Feed panel displays the Achaea public game feed.
The Feed panel displaying the public live game feed.
Side streams
The System and Combat side streams provide dedicated transcripts for events and combat replacement rows.
The System stream rendering events.
Metrics
The Metrics panel displays runtime diagnostic metrics.
The Metrics panel with runtime diagnostics.
